LTBCL series
Large continuous LED backlights
Overview
Models
Downloads
Related
Backlight
Diffused
Key advantages
- Ideal for small to large FOV applications
- 24V DC supply voltage
- Easy integration & compact size
- Robust industrial design
- JST connector (optional M8, M12)
- Red, Green, Blue, White and IR
- Custom models available on request
LTBCL series features continuous LED backlights designed to suit a wide variety of machine vision applications requiring high image contrast for the inspection of small to large workpieces, such as shape and size inspection of automotive parts, gauging of mechanical components, silhouette inspection and fill level inspection of large objects.
LTBCL backlights provide diffused even illumination and offer a robust and compact design that can be easily integrated into any industrial environment.
Suggested use is in continuous mode.
Discover more
Learn
Basics
Online tools
Optics finder
Camera finder
Lighting finder
Imaging lens selector
Projection lens selector
Application examples
- Metal part measurement
- Fill level inspection
- Plastic part shape inspection

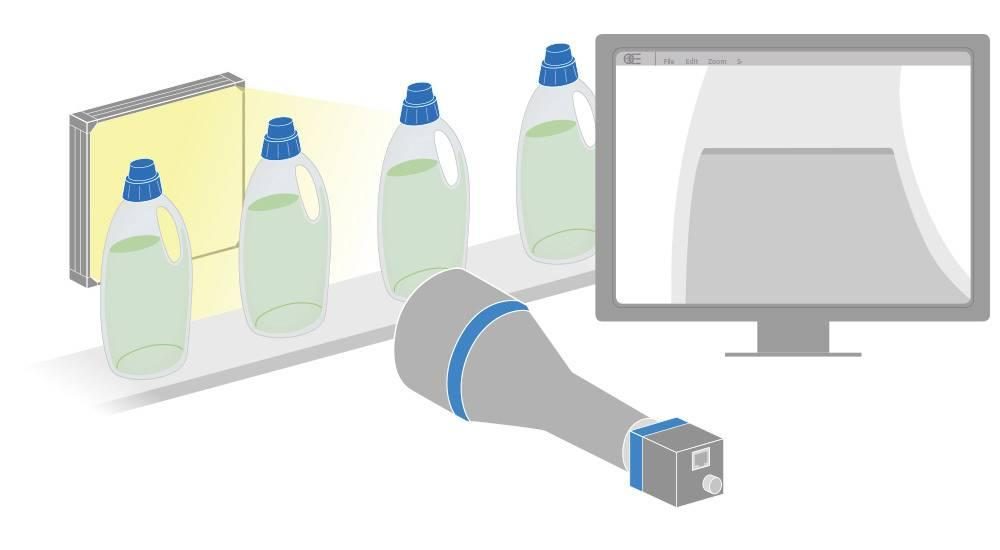

Application: Silhouette and fill level inspection of a large detergent plastic bottle. Sample: Detergent plastic bottle. LTBCL series backlight uniformly illuminates the inspected workpiece and ensures high image contrast for accurate measurement of the bottle and liquid level inspection.

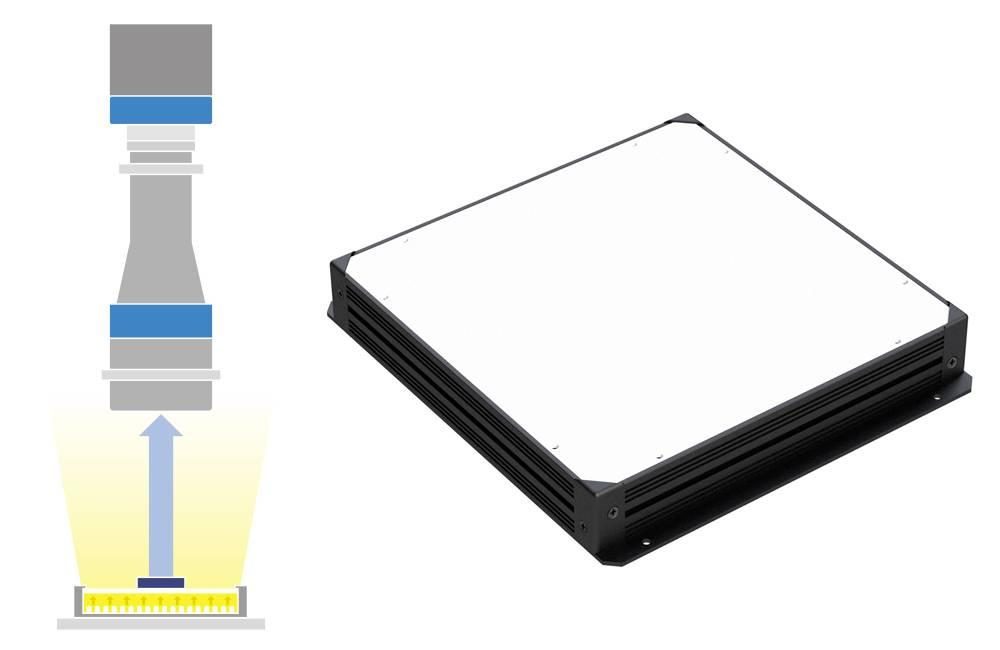

Lighting structure
Please wait
Unable to process your request
Back to models
Filters
Close
Reset Filters
Notes
- ± 15%. See datasheet for measurments distance
- Tolerance ± 2%
- Constant voltage power supply
- Constant current power supply
Back to models
Technical documents
Product user guide
